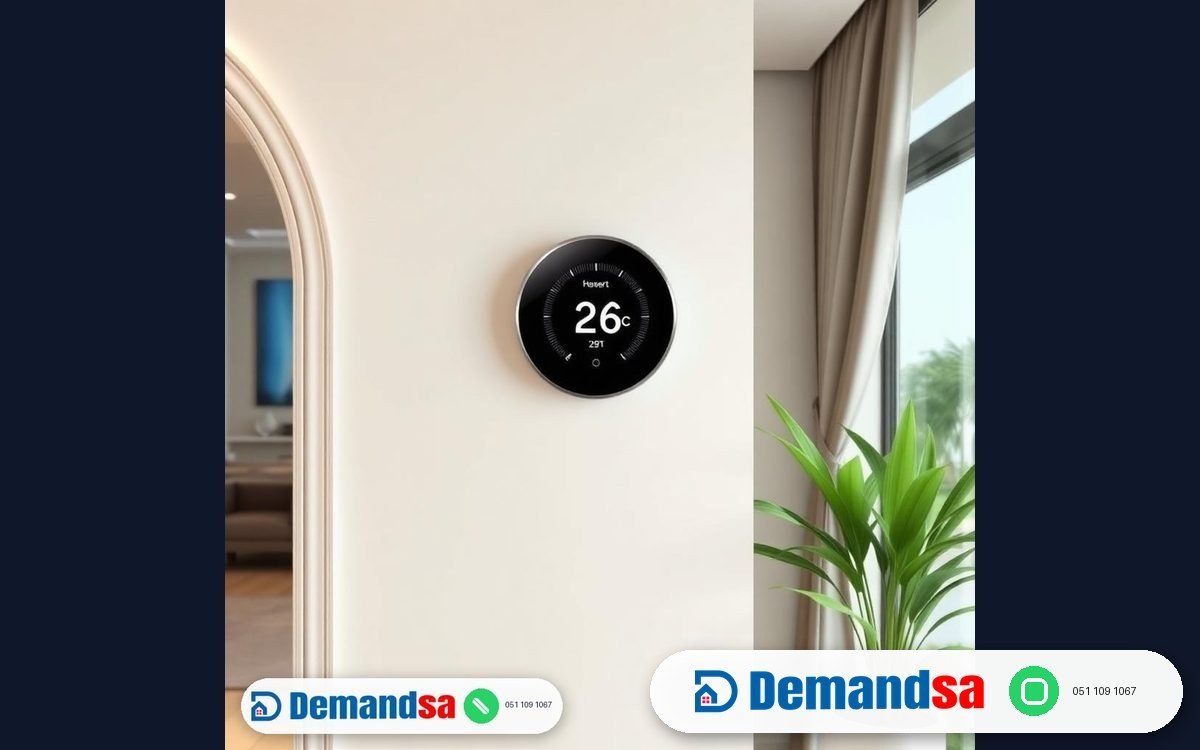

Installing Smart Wi-Fi Thermostats (Ecobee / Nest) on Saudi Central & Ducted Split ACs

1. Executive Summary & The Reality of Saudi Arabia's Climate

Maintaining 24VAC Low-Voltage HVAC Thermostatic Controls, Solid-State Relays, and Wi-Fi IoT Platforms in the Kingdom of Saudi Arabia requires an engineering approach that directly accounts for the harshest desert climate conditions on earth. Whether you manage a modern villa in the north of Riyadh, a coastal residence overlooking the Red Sea in Jeddah, or an expansive family estate in the Eastern Province (Dammam, Khobar, and Dhahran), external environmental parameters dictate operational reliability.

Central package units (Zamil, Carrier, Trane) and ducted concealed splits cooling large Saudi villas are traditionally paired with rudimentary mechanical dial thermostats or basic digital wall displays. These dumb controls run ACs constantly even when family members are away at work or school, wasting thousands of kilowatt-hours. Replacing them with modern smart thermostats (Ecobee Smart Thermostat Premium or Google Nest) slashes electricity bills by 20%; however, improper 24VAC wiring or missing Common (C-wire) power connections can blow delicate control transformer fuses.

When ambient daytime summer temperatures consistently hover between 46°C and 52°C, equipment safety margins narrow dramatically. A minor issue—such as a 10% reduction in heat transfer, a minor electrical phase unbalance, or a partially restricted drainage line—compounds rapidly under continuous thermal stress into catastrophic component failure. Beyond the immediate inconvenience and disruption to household comfort, unaddressed problems accelerate electricity consumption across Saudi Electricity Company (SEC) progressive billing tiers, causing monthly utility expenses to skyrocket. Understanding the technical mechanics of your installation, executing systematic diagnostic checklists, and adhering to the Saudi Building Code (SBC) standards ensures long-term performance, family safety, and significant financial savings over the asset's operating lifespan.

---

2. Technical Anatomy & Core Component Architecture

To troubleshoot and maintain 24VAC Low-Voltage HVAC Thermostatic Controls, Solid-State Relays, and Wi-Fi IoT Platforms effectively, homeowners and facility managers must understand the critical components that make up the system:

• Primary Mechanical & Electrical Assemblies: Modern residential installations rely on Smart Wi-Fi thermostats with remote room occupancy sensors (Ecobee / Nest), 24VAC step-down control transformers, 5-wire 18AWG thermostat control cables, isolation relays, and C-wire power extender kits..
• Thermal & Environmental Vulnerabilities: Extreme temperature swings between blistering outdoor sunlight and air-conditioned indoor spaces create thermal expansion and contraction cycles. This physical movement loosens terminal lugs, strains mechanical joints, and accelerates the degradation of rubber gaskets, synthetic seals, and protective coatings.
• Atmospheric Contaminants: Fine airborne silica particles from seasonal Shamal sandstorms possess high abrasive properties. When drawn into moving parts or electrical contacts, silica dust combines with ambient moisture or lubricant grease to form a destructive abrasive paste that scorches electrical contacts and grinds away metallic bearings.

---

3. Comprehensive Diagnostic Protocol & Warning Signs

Before undertaking any mechanical intervention or scheduling a service technician, complete this systematic diagnostic procedure to pinpoint the root cause of the malfunction:

Physical Symptoms to Inspect Homeowners commonly report the following warning indicators: Old thermostat display unreadable or drifting out of calibration, central AC running non-stop even when rooms are empty, smart thermostat screen flickering or draining batteries due to missing C-wire, or blown 3A control board fuses.

Step-by-Step Diagnostic Routine 1. Visual & Acoustic Assessment: Inspect exterior and interior housings for signs of physical distress, including oil staining (indicating refrigerant or hydraulic leaks), scorching or discoloration near electrical terminations, violent vibrations, or abnormal mechanical grinding sounds. 2. Operational Load & Environmental Check: Verify ambient conditions. Confirm that ventilation clearances around outdoor units comply with manufacturer minimums (at least 50cm from structural perimeter walls). 3. Electrical Verification: Utilize a calibrated True-RMS digital multimeter to measure operating voltage and running amperage. Compare measured values against the manufacturer technical nameplate rating; any deviation exceeding ±7% warrants immediate shutdown to prevent motor winding burnout. 4. Thermal Imaging & Differential Temperature: For cooling and heating circuits, measure the temperature drop (Delta T) between intake and supply registers; a healthy system should sustain a consistent thermal differential appropriate to its design specifications.

---

4. Step-by-Step Professional Execution & Service Walkthrough

When performing preventative maintenance or executing corrective repairs, strictly follow this certified step-by-step engineering walkthrough:

1. Verify System Compatibility: confirm your HVAC system uses standard low-voltage 24VAC controls (95% of central package and ducted split units in Saudi Arabia use 24VAC; do not install on high-voltage 220V direct line-voltage systems without step-down relays). 2. Turn off HVAC Electrical Power: switch off the indoor air handler and outdoor package unit circuit breakers before touching wires. 3. Label Standard Control Wires: remove the old wall plate and photograph existing terminal wires: 'R' (24VAC Hot power, red wire), 'C' (24VAC Common ground return, blue or black wire), 'Y' or 'Y1/Y2' (Compressor cooling, yellow wire), 'G' (Indoor blower fan, green wire), and 'W' (Heating/Reverse valve, if equipped). 4. Resolving the Missing C-Wire Problem: smart Wi-Fi screens and continuous cloud connections require continuous 24VAC power; if your old wall box only has 4 wires (R, Y, G, W) without a Common wire, install the included Power Extender Kit (PEK) inside the HVAC control board, converting the existing 4 wires into a virtual 5-wire feed without pulling new cables through walls! 5. Mount and Level the Smart Thermostat Backplate: secure the mounting plate to the wall tile using plastic wall anchors, pulling wires through the central opening; push stripped 18AWG copper leads firmly into corresponding spring terminals (R, C, Y1, G). 6. Snap on the Display & Commission: restore electrical power; complete the on-screen setup wizard: configure equipment type (Air-to-Air Heat Pump vs Conventional AC), minimum compressor off-time (set to 5 minutes to protect compressor from short-cycling), and temperature deadband (set to 1.5°C). 7. Deploy Remote Room Sensors: place wireless temperature and occupancy sensors in the master bedroom and living majlis; the thermostat prioritizes cooling comfort where occupants are actually present, switching to eco-mode automatically when rooms are empty.

Essential Tooling & Safety Equipment - True-RMS Digital Multimeter and Clamp Meter (CAT III 600V certified). - Calibrated Torque Wrench (1.0 to 25.0 Nm range). - Personal Protective Equipment (PPE): Level 2 dielectric safety gloves, impact-resistant safety goggles, and steel-toe work boots. - Genuine OEM replacement parts matched to exact equipment serial numbers. Never substitute generic unauthorized parts on high-stress Saudi residential systems.

---

5. Saudi Building Code (SBC) & Regulatory Compliance

All residential installations and contractor modifications within the Kingdom must conform rigorously to national engineering frameworks:

• Primary Regulatory Standard: Saudi Building Code SBC 601 (Energy Conservation: HVAC Thermostatic Controls) and SBC 401.
• Earthing & Ground Bonding: In accordance with SBC requirements, earth continuity conductors must be securely bonded, maintaining an earth loop impedance strictly below 5.0 ohms to safeguard human life against fatal electric shock.
• Municipal & Environmental Guidelines: Waste refrigerants, contaminated lubricating oils, and chemical wash runoff must be captured and disposed of through authorized environmental recycling facilities, avoiding illegal discharge into municipal storm or sewer systems.

---

6. 2026 Transparent Saudi Market Pricing Matrix (SAR)

To protect homeowners against price gouging and substandard workmanship, DemandSa maintains complete pricing transparency across all major Saudi metropolitan centers:

| Service Classification | Average Market Price (SAR) | Typical Service Duration | Standard Warranty Period |
| :--- | :--- | :--- | :--- |
| Comprehensive Diagnostic Inspection | SAR 100 – 180 | 45 – 60 Minutes | Included in Service |
| Standard Preventive Service & Tune-Up | SAR 180 – 350 | 1.5 – 2.5 Hours | 30 Days |
| Intermediate Part Replacement | SAR 250 – 550 | 1.0 – 2.0 Hours | 90 Days (Parts & Labor) |
| Major Assembly Overhaul / Replacement | SAR 750 – 2,200 | 3.0 – 6.0 Hours | 180 Days |
| Emergency / Same-Day Dispatch Surcharge | SAR 80 – 150 | Immediate Priority | Guaranteed Fast Arrival |

Note: The pricing figures listed above represent certified competitive market averages across Riyadh, Jeddah, and the Eastern Province as of 2026. Specific costs depend on unit capacity, brand accessibility, and structural requirements.

---

7. Preventative Maintenance Schedule for Saudi Residences

Adhering to a disciplined maintenance schedule prevents costly emergency breakdowns during peak summer heatwaves:

• Bi-Weekly Routine: Inspect air intakes, clear visible windblown dust or debris from surrounding grilles, and verify that drainage paths remain unobstructed.
• Monthly Protocol: Wash reusable filtration elements, conduct visual inspections of electrical isolation switches, and monitor utility meter patterns on the SEC digital app for unusual consumption spikes.
• Biannual Pre-Summer Service (April / May): Commission a comprehensive professional deep clean, chemical coil or pipe flush, electrical terminal re-torquing, and full sensor calibration before seasonal temperatures exceed 40°C.
• Annual Overhaul (October / November): Execute full system descaling, inspect structural vibration isolation pads, check anti-corrosion sacrificial anodes, and renew weather seals around exterior enclosures.

---

8. Top 5 Costly Mistakes Saudi Homeowners Must Avoid

1. Hiring Unlicensed Freelance Technicians: Engaging unverified street laborers lacking diagnostic instruments often leads to misdiagnosed faults, stripped bolts, bypassed safety switches, and dangerous electrical fire hazards.
2. Postponing Maintenance Until Total Failure: Operating equipment with minor warning noises or reduced output forces internal components to work at extreme temperatures, transforming a simple 150 SAR capacitor replacement into an expensive 2,000 SAR motor burnout.
3. Using Substandard Counterfeit Spare Parts: The local market contains gray-market replica parts that fail within weeks under 50°C summer conditions. Always demand verified OEM components with manufacturer warranty papers.
4. Ignoring Chemical Flush Guidelines: Using aggressive industrial acids or caustic sodium hydroxide dissolves aluminum fins, thins copper pipe walls, and destroys rubber gaskets, creating hidden leaks inside structural walls and slabs.
5. Overlooking Proper Ventilation Clearances: Storing garden furniture, packing boxes, or building decorative wooden screens tight against outdoor condenser units restricts air circulation, triggering chronic high-pressure thermal shutdowns.

---

9. Frequently Asked Questions (Technical Q&A)

Q: Can a smart thermostat be installed on standard wall-mounted split ACs?

Answer: No, standard high-wall split units (like Gree, Midea, or LG) use proprietary infrared communication. Smart thermostats (Ecobee/Nest) are engineered for Central Package units and Ducted Concealed Split systems that use standard 24VAC wall wiring.

Q: What happens if my thermostat wire lacks a 'C-wire' (Common wire)?

Answer: Without a C-wire, modern smart thermostats cannot receive continuous power to run Wi-Fi and color screens. Using an included Power Extender Kit (PEK) inside the AC unit solves this without breaking walls to pull new wires.

Q: How much money does a smart thermostat save on Saudi electricity bills?

Answer: By automatically shifting setpoints when occupants leave the house and optimizing cooling curves during peak tariff hours, smart thermostats document verified 15% to 23% savings on summer cooling bills.

Q: Can I adjust my villa's AC temperature from my smartphone while at work?

Answer: YES! The mobile smartphone app gives you 100% remote control over temperatures, schedules, and fan modes from anywhere in the world.

---

10. Professional Assistance & Booking via DemandSa

When technical issues exceed routine DIY cleaning or require precision test instrumentation, rely on DemandSa's network of certified, background-checked residential technicians. We provide rapid dispatch across Riyadh, Jeddah, Mecca, Medina, Dammam, Khobar, and 12 additional cities across the Kingdom.

• Certified & Vetted Technicians: Every professional is licensed, thoroughly vetted, and compliant with Saudi Building Code standards.
• Upfront & Transparent Pricing: Receive clear quotations with zero hidden surcharges or surprise fees.
• Ironclad Warranty Guarantee: All service jobs include warranty coverage on both replacement parts and technician labor.
• Fast Same-Day Dispatch: Book directly through the DemandSa web platform or mobile app, or contact our dedicated customer support desk at 0511091067.
