Testing & Replacing Swollen AC Dual Run Capacitors (45/5 uF): Diagnosing Compressor Hums

1. Executive Summary & The Reality of Saudi Arabia's Climate

Maintaining Metallized Polypropylene Film Dual Run Capacitors (370V/440VAC, 50/60Hz) in the Kingdom of Saudi Arabia requires an engineering approach that directly accounts for the harshest desert climate conditions on earth. Whether you manage a modern villa in the north of Riyadh, a coastal residence overlooking the Red Sea in Jeddah, or an expansive family estate in the Eastern Province (Dammam, Khobar, and Dhahran), external environmental parameters dictate operational reliability.

The dual run capacitor is the single most common component failure in Saudi residential air conditioning. Installed inside rooftop outdoor condensing units where internal enclosure temperatures reach 70°C during July and August, the dielectric oil inside the cylindrical aluminum capacitor expands under extreme thermal pressure. The internal safety membrane ruptures, the aluminum top bulges upward like a swollen soda can, and capacitance plummets. Without the required 45uF starting phase shift, the compressor motor cannot turn, humming loudly and overheating until it trips the circuit breaker.

When ambient daytime summer temperatures consistently hover between 46°C and 52°C, equipment safety margins narrow dramatically. A minor issue—such as a 10% reduction in heat transfer, a minor electrical phase unbalance, or a partially restricted drainage line—compounds rapidly under continuous thermal stress into catastrophic component failure. Beyond the immediate inconvenience and disruption to household comfort, unaddressed problems accelerate electricity consumption across Saudi Electricity Company (SEC) progressive billing tiers, causing monthly utility expenses to skyrocket. Understanding the technical mechanics of your installation, executing systematic diagnostic checklists, and adhering to the Saudi Building Code (SBC) standards ensures long-term performance, family safety, and significant financial savings over the asset's operating lifespan.

---

2. Technical Anatomy & Core Component Architecture

To troubleshoot and maintain Metallized Polypropylene Film Dual Run Capacitors (370V/440VAC, 50/60Hz) effectively, homeowners and facility managers must understand the critical components that make up the system:

• Primary Mechanical & Electrical Assemblies: Modern residential installations rely on Dual round/oval oil-filled metallized polypropylene run capacitors (e.g., 45/5 uF, 50/5 uF, 440VAC rated for 85°C), 20k-ohm 2W bleed resistor, insulated dielectric screwdrivers, and digital capacitance multimeters..
• Thermal & Environmental Vulnerabilities: Extreme temperature swings between blistering outdoor sunlight and air-conditioned indoor spaces create thermal expansion and contraction cycles. This physical movement loosens terminal lugs, strains mechanical joints, and accelerates the degradation of rubber gaskets, synthetic seals, and protective coatings.
• Atmospheric Contaminants: Fine airborne silica particles from seasonal Shamal sandstorms possess high abrasive properties. When drawn into moving parts or electrical contacts, silica dust combines with ambient moisture or lubricant grease to form a destructive abrasive paste that scorches electrical contacts and grinds away metallic bearings.

---

3. Comprehensive Diagnostic Protocol & Warning Signs

Before undertaking any mechanical intervention or scheduling a service technician, complete this systematic diagnostic procedure to pinpoint the root cause of the malfunction:

Physical Symptoms to Inspect Homeowners commonly report the following warning indicators: Outdoor condenser fan is spinning but the compressor emits a deep electrical hum every minute without pumping cold air, top lid of the aluminum capacitor is swollen and bulged upward, or oily dielectric fluid is leaking from terminals.

Step-by-Step Diagnostic Routine 1. Visual & Acoustic Assessment: Inspect exterior and interior housings for signs of physical distress, including oil staining (indicating refrigerant or hydraulic leaks), scorching or discoloration near electrical terminations, violent vibrations, or abnormal mechanical grinding sounds. 2. Operational Load & Environmental Check: Verify ambient conditions. Confirm that ventilation clearances around outdoor units comply with manufacturer minimums (at least 50cm from structural perimeter walls). 3. Electrical Verification: Utilize a calibrated True-RMS digital multimeter to measure operating voltage and running amperage. Compare measured values against the manufacturer technical nameplate rating; any deviation exceeding ±7% warrants immediate shutdown to prevent motor winding burnout. 4. Thermal Imaging & Differential Temperature: For cooling and heating circuits, measure the temperature drop (Delta T) between intake and supply registers; a healthy system should sustain a consistent thermal differential appropriate to its design specifications.

---

4. Step-by-Step Professional Execution & Service Walkthrough

When performing preventative maintenance or executing corrective repairs, strictly follow this certified step-by-step engineering walkthrough:

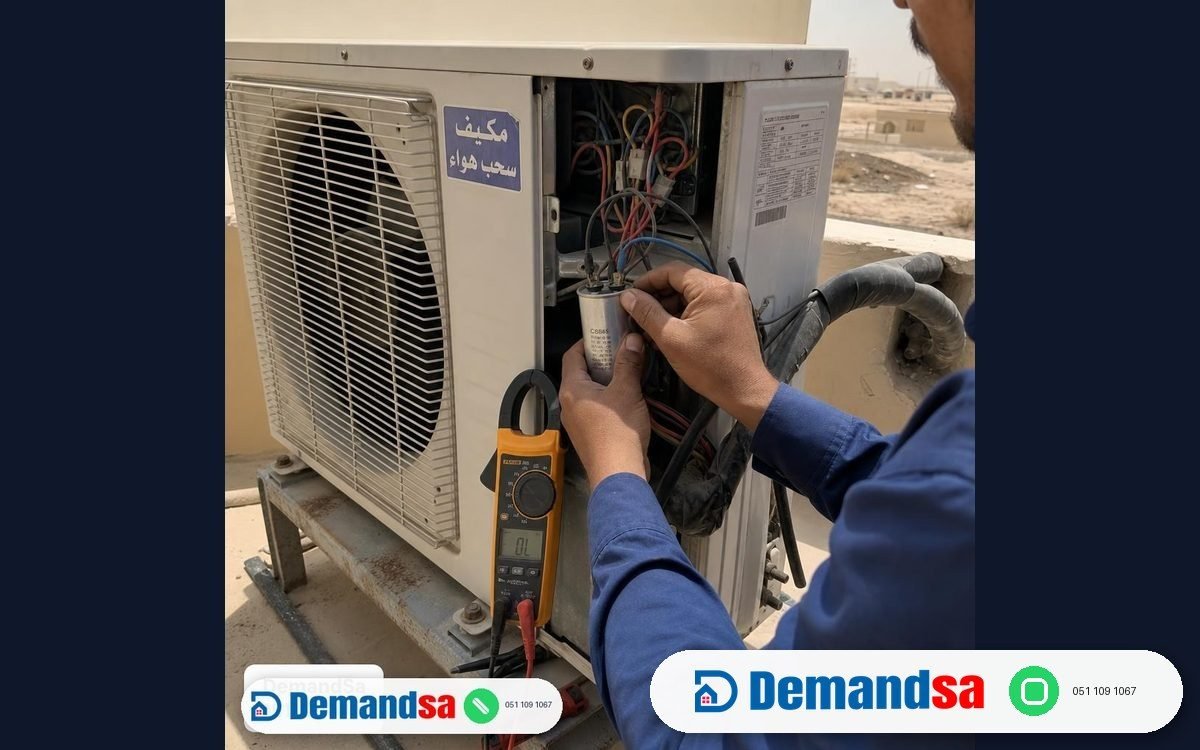

1. Safety Isolation: turn off the AC circuit breaker and pull the outdoor electrical disconnect handle; NEVER touch capacitor terminals without verifying power is dead. 2. Safely Discharge the Stored High Voltage: even with power off, a healthy capacitor can hold a lethal 400V DC charge for hours; bridge across terminals using an insulated screwdriver with an insulated handle or a 20,000-ohm resistor (connecting HERM to Common, and FAN to Common) to harmlessly dissipate stored energy. 3. Label Wire Terminals: inspect the three terminal posts on top of the capacitor: 'HERM' (Hermetic Compressor, usually yellow wire), 'FAN' (Condenser Fan, usually brown wire), and 'C' (Common, usually dual black/red wires); snap a photo with your phone before disconnecting. 4. Capacitance Testing with a Multimeter: set your digital multimeter to the Capacitance mode (symbolized by -|( - or -|(- ); place the black probe on 'C' (Common) and the red probe on 'HERM': a 45/5 uF capacitor should read 45 uF (±5%, meaning 42.7 to 47.3 uF); if the reading is below 40 uF, reads zero, or displays 'OL', the capacitor is dead. 5. Test the FAN Terminal: move the red probe from HERM to 'FAN': it should read 5.0 uF (±5%); a failing fan capacitor causes the outdoor fan motor to run slow and overheat. 6. Install Heavy-Duty 440V Replacement: install an OEM-grade capacitor with matching capacitance (never alter microfarad ratings!) and ensure a 440VAC rating with 85°C ambient temperature tolerance (avoid cheap 370V capacitors that pop in summer); reconnect wires securely using tight spade terminals. 7. Test Start: restore electrical power; the compressor should instantly roar to life smoothly without hesitation, delivering icy cold air inside within 90 seconds.

Essential Tooling & Safety Equipment - True-RMS Digital Multimeter and Clamp Meter (CAT III 600V certified). - Calibrated Torque Wrench (1.0 to 25.0 Nm range). - Personal Protective Equipment (PPE): Level 2 dielectric safety gloves, impact-resistant safety goggles, and steel-toe work boots. - Genuine OEM replacement parts matched to exact equipment serial numbers. Never substitute generic unauthorized parts on high-stress Saudi residential systems.

---

5. Saudi Building Code (SBC) & Regulatory Compliance

All residential installations and contractor modifications within the Kingdom must conform rigorously to national engineering frameworks:

• Primary Regulatory Standard: Saudi Building Code SBC 501 (Mechanical Code) and SASO IEC 60252 (AC Motor Capacitors).
• Earthing & Ground Bonding: In accordance with SBC requirements, earth continuity conductors must be securely bonded, maintaining an earth loop impedance strictly below 5.0 ohms to safeguard human life against fatal electric shock.
• Municipal & Environmental Guidelines: Waste refrigerants, contaminated lubricating oils, and chemical wash runoff must be captured and disposed of through authorized environmental recycling facilities, avoiding illegal discharge into municipal storm or sewer systems.

---

6. 2026 Transparent Saudi Market Pricing Matrix (SAR)

To protect homeowners against price gouging and substandard workmanship, DemandSa maintains complete pricing transparency across all major Saudi metropolitan centers:

| Service Classification | Average Market Price (SAR) | Typical Service Duration | Standard Warranty Period |
| :--- | :--- | :--- | :--- |
| Comprehensive Diagnostic Inspection | SAR 100 – 180 | 45 – 60 Minutes | Included in Service |
| Standard Preventive Service & Tune-Up | SAR 180 – 350 | 1.5 – 2.5 Hours | 30 Days |
| Intermediate Part Replacement | SAR 250 – 550 | 1.0 – 2.0 Hours | 90 Days (Parts & Labor) |
| Major Assembly Overhaul / Replacement | SAR 750 – 2,200 | 3.0 – 6.0 Hours | 180 Days |
| Emergency / Same-Day Dispatch Surcharge | SAR 80 – 150 | Immediate Priority | Guaranteed Fast Arrival |

Note: The pricing figures listed above represent certified competitive market averages across Riyadh, Jeddah, and the Eastern Province as of 2026. Specific costs depend on unit capacity, brand accessibility, and structural requirements.

---

7. Preventative Maintenance Schedule for Saudi Residences

Adhering to a disciplined maintenance schedule prevents costly emergency breakdowns during peak summer heatwaves:

• Bi-Weekly Routine: Inspect air intakes, clear visible windblown dust or debris from surrounding grilles, and verify that drainage paths remain unobstructed.
• Monthly Protocol: Wash reusable filtration elements, conduct visual inspections of electrical isolation switches, and monitor utility meter patterns on the SEC digital app for unusual consumption spikes.
• Biannual Pre-Summer Service (April / May): Commission a comprehensive professional deep clean, chemical coil or pipe flush, electrical terminal re-torquing, and full sensor calibration before seasonal temperatures exceed 40°C.
• Annual Overhaul (October / November): Execute full system descaling, inspect structural vibration isolation pads, check anti-corrosion sacrificial anodes, and renew weather seals around exterior enclosures.

---

8. Top 5 Costly Mistakes Saudi Homeowners Must Avoid

1. Hiring Unlicensed Freelance Technicians: Engaging unverified street laborers lacking diagnostic instruments often leads to misdiagnosed faults, stripped bolts, bypassed safety switches, and dangerous electrical fire hazards.
2. Postponing Maintenance Until Total Failure: Operating equipment with minor warning noises or reduced output forces internal components to work at extreme temperatures, transforming a simple 150 SAR capacitor replacement into an expensive 2,000 SAR motor burnout.
3. Using Substandard Counterfeit Spare Parts: The local market contains gray-market replica parts that fail within weeks under 50°C summer conditions. Always demand verified OEM components with manufacturer warranty papers.
4. Ignoring Chemical Flush Guidelines: Using aggressive industrial acids or caustic sodium hydroxide dissolves aluminum fins, thins copper pipe walls, and destroys rubber gaskets, creating hidden leaks inside structural walls and slabs.
5. Overlooking Proper Ventilation Clearances: Storing garden furniture, packing boxes, or building decorative wooden screens tight against outdoor condenser units restricts air circulation, triggering chronic high-pressure thermal shutdowns.

---

9. Frequently Asked Questions (Technical Q&A)

Q: Why do AC capacitors fail so frequently in Saudi summer?

Answer: Capacitors are killed by heat. Rooftop condenser electrical compartments reach 70°C in July. Continuous high heat breaks down the thin polypropylene dielectric film, boiling the internal oil until the safety top bulges.

Q: Can I replace a 370V capacitor with a 440V capacitor?

Answer: YES! You can always safely upgrade to a higher voltage rating (a 440V capacitor has thicker dielectric insulation and handles summer heat spikes much better). However, you must NEVER change the microfarad (uF) rating.

Q: What happens if I leave an AC running with a bad capacitor?

Answer: The compressor motor will hum and draw locked-rotor amperage (LRA) continuously, overheating its copper windings until internal insulation melts, causing a permanent 2,000 SAR compressor burnout!

Q: How can I visually identify a blown capacitor without a multimeter?

Answer: Look at the flat top metal lid: if the top is domed, bulged, or pushed upward like a tin can about to pop, or if oily fluid has seeped onto the terminals, the capacitor is 100% blown.

---
