Three-Phase 230V/400V Electricity in Saudi Villas: Phase Balancing, Neutral Overload & SEC Standards

1. Executive Summary & The Reality of Saudi Arabia's Climate

Maintaining Three-Phase 4-Wire 230V/400V 60Hz Residential Main Distribution Networks in the Kingdom of Saudi Arabia requires an engineering approach that directly accounts for the harshest desert climate conditions on earth. Whether you manage a modern villa in the north of Riyadh, a coastal residence overlooking the Red Sea in Jeddah, or an expansive family estate in the Eastern Province (Dammam, Khobar, and Dhahran), external environmental parameters dictate operational reliability.

Modern Saudi residential villas receive three-phase 230V/400V 60Hz power from the Saudi Electricity Company (SEC). Individual single-phase appliances (split ACs, water heaters, kitchen ovens) operate at 230V between one Phase and Neutral. In poorly engineered villas, careless electricians connect almost all heavy AC loads to Phase 1 (Red) while Phases 2 and 3 remain lightly loaded. Under summer peak conditions, Phase 1 draws 110 Amps while Phase 2 draws only 25 Amps, causing severe phase unbalance, voltage sagging to 195V, neutral conductor overheating, and tripping the main utility meter.

When ambient daytime summer temperatures consistently hover between 46°C and 52°C, equipment safety margins narrow dramatically. A minor issue—such as a 10% reduction in heat transfer, a minor electrical phase unbalance, or a partially restricted drainage line—compounds rapidly under continuous thermal stress into catastrophic component failure. Beyond the immediate inconvenience and disruption to household comfort, unaddressed problems accelerate electricity consumption across Saudi Electricity Company (SEC) progressive billing tiers, causing monthly utility expenses to skyrocket. Understanding the technical mechanics of your installation, executing systematic diagnostic checklists, and adhering to the Saudi Building Code (SBC) standards ensures long-term performance, family safety, and significant financial savings over the asset's operating lifespan.

---

2. Technical Anatomy & Core Component Architecture

To troubleshoot and maintain Three-Phase 4-Wire 230V/400V 60Hz Residential Main Distribution Networks effectively, homeowners and facility managers must understand the critical components that make up the system:

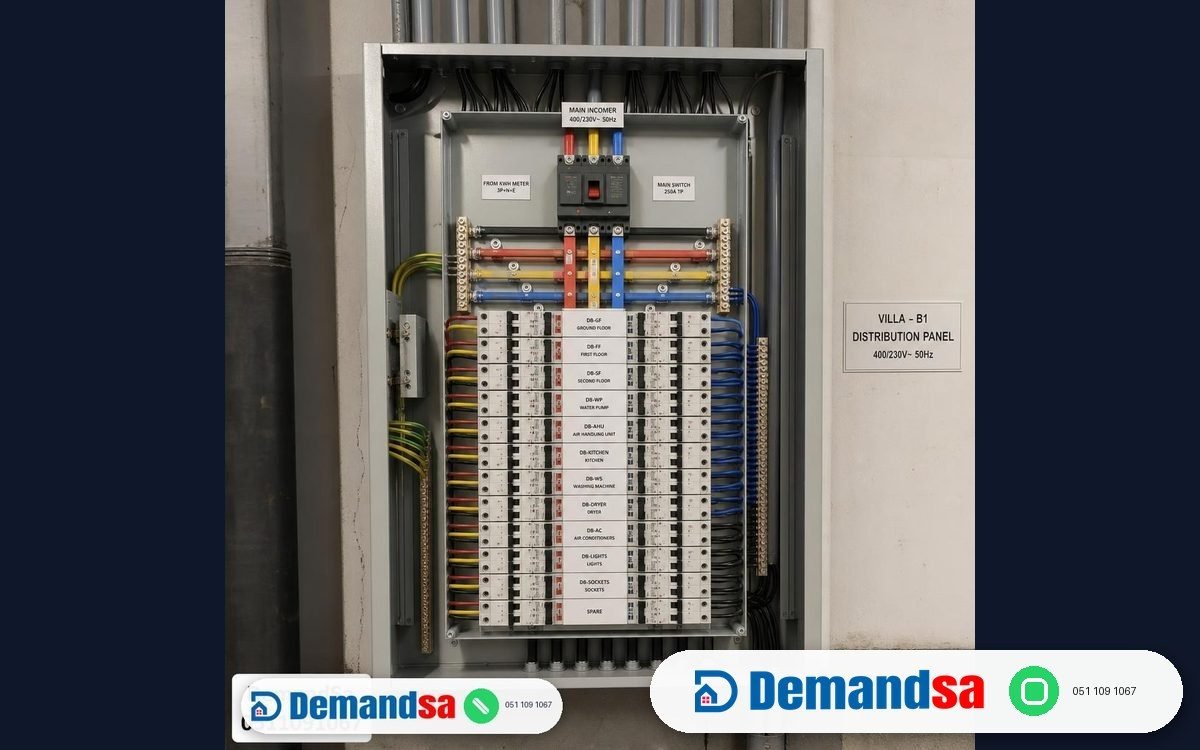

• Primary Mechanical & Electrical Assemblies: Modern residential installations rely on Molded Case Circuit Breakers (MCCB), tinned solid copper phase and neutral busbars, True-RMS clamp meters, phase sequence and rotation meters, and computerized load logging meters..
• Thermal & Environmental Vulnerabilities: Extreme temperature swings between blistering outdoor sunlight and air-conditioned indoor spaces create thermal expansion and contraction cycles. This physical movement loosens terminal lugs, strains mechanical joints, and accelerates the degradation of rubber gaskets, synthetic seals, and protective coatings.
• Atmospheric Contaminants: Fine airborne silica particles from seasonal Shamal sandstorms possess high abrasive properties. When drawn into moving parts or electrical contacts, silica dust combines with ambient moisture or lubricant grease to form a destructive abrasive paste that scorches electrical contacts and grinds away metallic bearings.

---

3. Comprehensive Diagnostic Protocol & Warning Signs

Before undertaking any mechanical intervention or scheduling a service technician, complete this systematic diagnostic procedure to pinpoint the root cause of the malfunction:

Physical Symptoms to Inspect Homeowners commonly report the following warning indicators: Main breaker tripping when only a few ACs are running while other rooms have no power, lights dimming drastically in one wing of the house, neutral busbar discolored or scorched, and electrical motors humming or running hot.

Step-by-Step Diagnostic Routine 1. Visual & Acoustic Assessment: Inspect exterior and interior housings for signs of physical distress, including oil staining (indicating refrigerant or hydraulic leaks), scorching or discoloration near electrical terminations, violent vibrations, or abnormal mechanical grinding sounds. 2. Operational Load & Environmental Check: Verify ambient conditions. Confirm that ventilation clearances around outdoor units comply with manufacturer minimums (at least 50cm from structural perimeter walls). 3. Electrical Verification: Utilize a calibrated True-RMS digital multimeter to measure operating voltage and running amperage. Compare measured values against the manufacturer technical nameplate rating; any deviation exceeding ±7% warrants immediate shutdown to prevent motor winding burnout. 4. Thermal Imaging & Differential Temperature: For cooling and heating circuits, measure the temperature drop (Delta T) between intake and supply registers; a healthy system should sustain a consistent thermal differential appropriate to its design specifications.

---

4. Step-by-Step Professional Execution & Service Walkthrough

When performing preventative maintenance or executing corrective repairs, strictly follow this certified step-by-step engineering walkthrough:

1. Perform a live True-RMS current audit: with all villa air conditioning and household appliances operating under full summer afternoon load, clamp an industrial True-RMS multimeter around each incoming phase conductor: Line 1 (L1), Line 2 (L2), and Line 3 (L3). 2. Calculate the Phase Unbalance Percentage: calculate the average phase current; the maximum deviation of any single phase from the average must remain strictly below 10% in compliance with SEC engineering guidelines. 3. Measure Neutral Current: clamp the meter around the main neutral conductor; in a perfectly balanced three-phase system, neutral current is near zero; if neutral current exceeds 40% of phase current, immediate circuit rebalancing is required. 4. Rebalance Branch Circuits: de-energize the panel, identify heavy single-phase 230V loads (such as 2.5-ton split ACs drawing 14A each), and physically move breaker clip-on positions across the busbar so that heavy loads are evenly distributed (e.g., two ACs on L1, two on L2, and two on L3). 5. Check Voltage Drop: measure phase-to-neutral voltage at the furthest branch outlet; voltage must remain between 220V and 240V; voltage dropping below 207V (outside ±6% tolerance) damages compressor motors. 6. Inspect the Main Neutral Connection: ensure the incoming neutral conductor matches the cross-sectional gauge of phase conductors and is torqued to 3.5 Nm with zero corrosion.

Essential Tooling & Safety Equipment - True-RMS Digital Multimeter and Clamp Meter (CAT III 600V certified). - Calibrated Torque Wrench (1.0 to 25.0 Nm range). - Personal Protective Equipment (PPE): Level 2 dielectric safety gloves, impact-resistant safety goggles, and steel-toe work boots. - Genuine OEM replacement parts matched to exact equipment serial numbers. Never substitute generic unauthorized parts on high-stress Saudi residential systems.

---

5. Saudi Building Code (SBC) & Regulatory Compliance

All residential installations and contractor modifications within the Kingdom must conform rigorously to national engineering frameworks:

• Primary Regulatory Standard: Saudi Building Code SBC 401 (Section 312: Phase Loading) and SEC Distribution Planning Regulations.
• Earthing & Ground Bonding: In accordance with SBC requirements, earth continuity conductors must be securely bonded, maintaining an earth loop impedance strictly below 5.0 ohms to safeguard human life against fatal electric shock.
• Municipal & Environmental Guidelines: Waste refrigerants, contaminated lubricating oils, and chemical wash runoff must be captured and disposed of through authorized environmental recycling facilities, avoiding illegal discharge into municipal storm or sewer systems.

---

6. 2026 Transparent Saudi Market Pricing Matrix (SAR)

To protect homeowners against price gouging and substandard workmanship, DemandSa maintains complete pricing transparency across all major Saudi metropolitan centers:

| Service Classification | Average Market Price (SAR) | Typical Service Duration | Standard Warranty Period |
| :--- | :--- | :--- | :--- |
| Comprehensive Diagnostic Inspection | SAR 100 – 180 | 45 – 60 Minutes | Included in Service |
| Standard Preventive Service & Tune-Up | SAR 180 – 350 | 1.5 – 2.5 Hours | 30 Days |
| Intermediate Part Replacement | SAR 250 – 550 | 1.0 – 2.0 Hours | 90 Days (Parts & Labor) |
| Major Assembly Overhaul / Replacement | SAR 750 – 2,200 | 3.0 – 6.0 Hours | 180 Days |
| Emergency / Same-Day Dispatch Surcharge | SAR 80 – 150 | Immediate Priority | Guaranteed Fast Arrival |

Note: The pricing figures listed above represent certified competitive market averages across Riyadh, Jeddah, and the Eastern Province as of 2026. Specific costs depend on unit capacity, brand accessibility, and structural requirements.

---

7. Preventative Maintenance Schedule for Saudi Residences

Adhering to a disciplined maintenance schedule prevents costly emergency breakdowns during peak summer heatwaves:

• Bi-Weekly Routine: Inspect air intakes, clear visible windblown dust or debris from surrounding grilles, and verify that drainage paths remain unobstructed.
• Monthly Protocol: Wash reusable filtration elements, conduct visual inspections of electrical isolation switches, and monitor utility meter patterns on the SEC digital app for unusual consumption spikes.
• Biannual Pre-Summer Service (April / May): Commission a comprehensive professional deep clean, chemical coil or pipe flush, electrical terminal re-torquing, and full sensor calibration before seasonal temperatures exceed 40°C.
• Annual Overhaul (October / November): Execute full system descaling, inspect structural vibration isolation pads, check anti-corrosion sacrificial anodes, and renew weather seals around exterior enclosures.

---

8. Top 5 Costly Mistakes Saudi Homeowners Must Avoid

1. Hiring Unlicensed Freelance Technicians: Engaging unverified street laborers lacking diagnostic instruments often leads to misdiagnosed faults, stripped bolts, bypassed safety switches, and dangerous electrical fire hazards.
2. Postponing Maintenance Until Total Failure: Operating equipment with minor warning noises or reduced output forces internal components to work at extreme temperatures, transforming a simple 150 SAR capacitor replacement into an expensive 2,000 SAR motor burnout.
3. Using Substandard Counterfeit Spare Parts: The local market contains gray-market replica parts that fail within weeks under 50°C summer conditions. Always demand verified OEM components with manufacturer warranty papers.
4. Ignoring Chemical Flush Guidelines: Using aggressive industrial acids or caustic sodium hydroxide dissolves aluminum fins, thins copper pipe walls, and destroys rubber gaskets, creating hidden leaks inside structural walls and slabs.
5. Overlooking Proper Ventilation Clearances: Storing garden furniture, packing boxes, or building decorative wooden screens tight against outdoor condenser units restricts air circulation, triggering chronic high-pressure thermal shutdowns.

---

9. Frequently Asked Questions (Technical Q&A)

Q: What is the difference between 230V and 400V in a Saudi villa?

Answer: 230V is the single-phase voltage measured between any one hot phase and the neutral wire (used for standard home outlets and appliances). 400V is the line-to-line voltage measured between any two hot phases (used for heavy package AC motors, large pumps, and 22kW EV chargers).

Q: Why is severe phase unbalance dangerous for villa electrical systems?

Answer: Phase unbalance forces massive return currents into the shared neutral wire. Because standard distribution boards do not have circuit breakers on the neutral conductor, an overloaded neutral can melt, sever, and send 400V across 230V appliances, destroying computers and televisions in seconds.

Q: How does balanced phases reduce my monthly SEC electric bill?

Answer: When phases are balanced, voltage drop and I²R resistance heat losses in supply cables are minimized. Motors run cooler and at maximum electrical efficiency, reducing wasted kilowatt-hours.

Q: Can I balance the electrical phases myself?

Answer: No! Working inside a three-phase 400V main distribution board requires certified Master Electricians using insulated Category III/IV diagnostic gear; contact with 400V line-to-line voltage is lethal.

---

10. Professional Assistance & Booking via DemandSa

When technical issues exceed routine DIY cleaning or require precision test instrumentation, rely on DemandSa's network of certified, background-checked residential technicians. We provide rapid dispatch across Riyadh, Jeddah, Mecca, Medina, Dammam, Khobar, and 12 additional cities across the Kingdom.

• Certified & Vetted Technicians: Every professional is licensed, thoroughly vetted, and compliant with Saudi Building Code standards.
• Upfront & Transparent Pricing: Receive clear quotations with zero hidden surcharges or surprise fees.
• Ironclad Warranty Guarantee: All service jobs include warranty coverage on both replacement parts and technician labor.
• Fast Same-Day Dispatch: Book directly through the DemandSa web platform or mobile app, or contact our dedicated customer support desk at 0511091067.
