Real-Time Smart Energy Monitors for Distribution Boards: Cutting High SEC Summer Electric Bills

1. Executive Summary & The Reality of Saudi Arabia's Climate

Maintaining Three-Phase Current Transformer (CT) Sub-Metering Systems, IoT Energy Gateways, and Load Disaggregation in the Kingdom of Saudi Arabia requires an engineering approach that directly accounts for the harshest desert climate conditions on earth. Whether you manage a modern villa in the north of Riyadh, a coastal residence overlooking the Red Sea in Jeddah, or an expansive family estate in the Eastern Province (Dammam, Khobar, and Dhahran), external environmental parameters dictate operational reliability.

During Saudi summer months (June through September), residential electrical bills routinely skyrocket to SAR 2,000 to SAR 4,500+ per month as 10 to 15 air conditioning units run around the clock. The Saudi Electricity Company (SEC) enforces progressive consumption tariffs: consumption below 6,000 kWh costs 18 halalas per kWh, but every kilowatt-hour exceeding 6,000 kWh jumps by 66% to 30 halalas per kWh! Without real-time sub-metering, homeowners have zero visibility into which aging AC compressor, malfunctioning water heater, or continuous pool pump is pushing their villa into the punitive 30-halala tier.

When ambient daytime summer temperatures consistently hover between 46°C and 52°C, equipment safety margins narrow dramatically. A minor issue—such as a 10% reduction in heat transfer, a minor electrical phase unbalance, or a partially restricted drainage line—compounds rapidly under continuous thermal stress into catastrophic component failure. Beyond the immediate inconvenience and disruption to household comfort, unaddressed problems accelerate electricity consumption across Saudi Electricity Company (SEC) progressive billing tiers, causing monthly utility expenses to skyrocket. Understanding the technical mechanics of your installation, executing systematic diagnostic checklists, and adhering to the Saudi Building Code (SBC) standards ensures long-term performance, family safety, and significant financial savings over the asset's operating lifespan.

---

2. Technical Anatomy & Core Component Architecture

To troubleshoot and maintain Three-Phase Current Transformer (CT) Sub-Metering Systems, IoT Energy Gateways, and Load Disaggregation effectively, homeowners and facility managers must understand the critical components that make up the system:

• Primary Mechanical & Electrical Assemblies: Modern residential installations rely on Split-core Current Transformer (CT) induction clamps (50A to 200A), three-phase DIN-rail Wi-Fi/Zigbee energy monitors (Emporia Vue 3, Shelly Pro 3EM, IoTaWatt), high-speed sampled voltage reference taps, and cloud analytics dashboards..
• Thermal & Environmental Vulnerabilities: Extreme temperature swings between blistering outdoor sunlight and air-conditioned indoor spaces create thermal expansion and contraction cycles. This physical movement loosens terminal lugs, strains mechanical joints, and accelerates the degradation of rubber gaskets, synthetic seals, and protective coatings.
• Atmospheric Contaminants: Fine airborne silica particles from seasonal Shamal sandstorms possess high abrasive properties. When drawn into moving parts or electrical contacts, silica dust combines with ambient moisture or lubricant grease to form a destructive abrasive paste that scorches electrical contacts and grinds away metallic bearings.

---

3. Comprehensive Diagnostic Protocol & Warning Signs

Before undertaking any mechanical intervention or scheduling a service technician, complete this systematic diagnostic procedure to pinpoint the root cause of the malfunction:

Physical Symptoms to Inspect Homeowners commonly report the following warning indicators: Electric bill doubling unexpectedly without family lifestyle changes, main circuit breaker tripping randomly during dinner, or inability to determine which air conditioner is malfunctioning and drawing excess current.

Step-by-Step Diagnostic Routine 1. Visual & Acoustic Assessment: Inspect exterior and interior housings for signs of physical distress, including oil staining (indicating refrigerant or hydraulic leaks), scorching or discoloration near electrical terminations, violent vibrations, or abnormal mechanical grinding sounds. 2. Operational Load & Environmental Check: Verify ambient conditions. Confirm that ventilation clearances around outdoor units comply with manufacturer minimums (at least 50cm from structural perimeter walls). 3. Electrical Verification: Utilize a calibrated True-RMS digital multimeter to measure operating voltage and running amperage. Compare measured values against the manufacturer technical nameplate rating; any deviation exceeding ±7% warrants immediate shutdown to prevent motor winding burnout. 4. Thermal Imaging & Differential Temperature: For cooling and heating circuits, measure the temperature drop (Delta T) between intake and supply registers; a healthy system should sustain a consistent thermal differential appropriate to its design specifications.

---

4. Step-by-Step Professional Execution & Service Walkthrough

When performing preventative maintenance or executing corrective repairs, strictly follow this certified step-by-step engineering walkthrough:

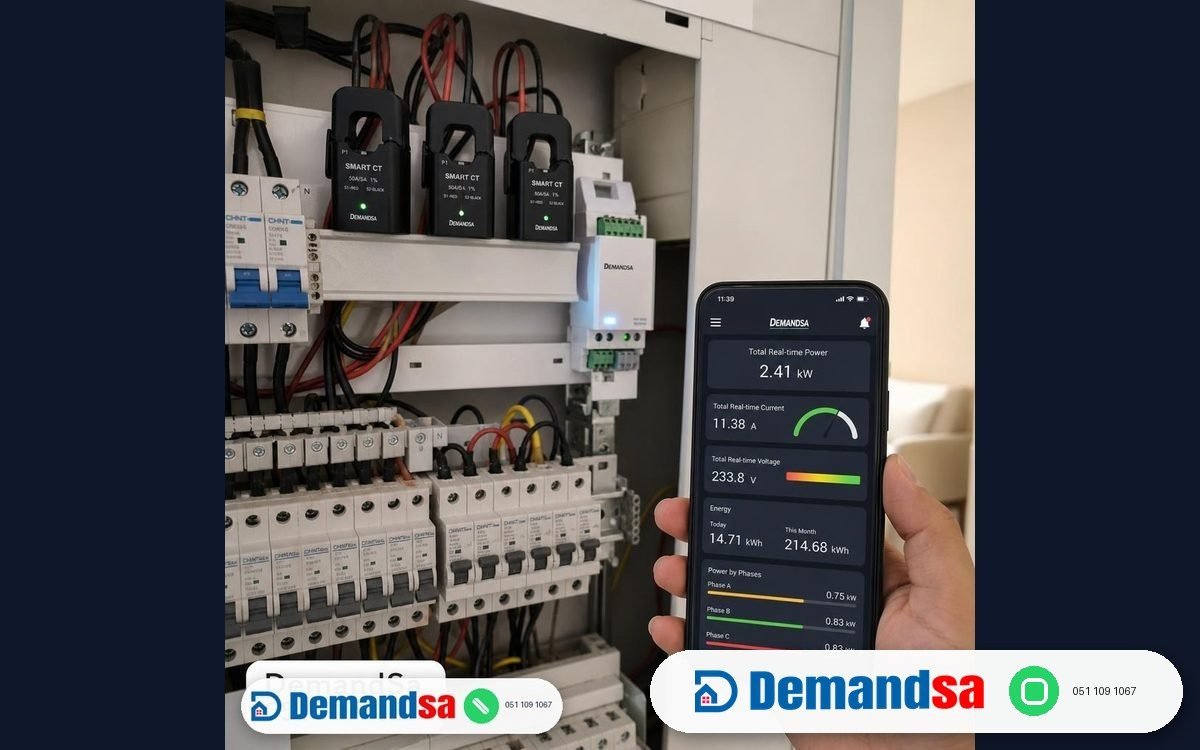

1. Safety & Preparation: de-energize the main distribution board via the external SEC service isolator switch; remove the metal panel deadfront cover to expose incoming feeder busbars and individual branch circuit wires. 2. Mount the DIN-Rail Monitor: snap the smart energy monitor module onto the DIN rail inside the distribution board; connect three-phase voltage reference wires (L1, L2, L3, and Neutral) protected by dedicated 6A miniature circuit breakers. 3. Install Non-Invasive CT Clamps: snap split-core current transformer clamps around incoming main supply cables; CT clamps measure magnetic fields generated by flowing current, requiring zero cutting or stripping of main cables! 4. Branch Circuit Monitoring: clamp individual 50A mini-CT sensors around dedicated high-consumption branch circuits: Master Bedroom AC, Majlis Package Unit, Rooftop Water Heaters, Kitchen Oven, and Swimming Pool Pump. 5. Commissioning & Calibration: connect the energy monitor to the home Wi-Fi network; calibrate voltage and phase angles in the mobile app to ensure True Power factor accuracy (measuring Real Watts rather than Apparent Volt-Amps). 6. Set Up Tier Alert Automations: input SEC tariff schedules (18 halalas under 6,000 kWh / 30 halalas above); configure smartphone push notifications: 'WARNING: Villa cumulative consumption has reached 5,500 kWh with 8 days remaining in billing cycle; auto-adjusting thermostat setpoints by +1.5°C to stay within Tier 1'.

Essential Tooling & Safety Equipment - True-RMS Digital Multimeter and Clamp Meter (CAT III 600V certified). - Calibrated Torque Wrench (1.0 to 25.0 Nm range). - Personal Protective Equipment (PPE): Level 2 dielectric safety gloves, impact-resistant safety goggles, and steel-toe work boots. - Genuine OEM replacement parts matched to exact equipment serial numbers. Never substitute generic unauthorized parts on high-stress Saudi residential systems.

---

5. Saudi Building Code (SBC) & Regulatory Compliance

All residential installations and contractor modifications within the Kingdom must conform rigorously to national engineering frameworks:

• Primary Regulatory Standard: Saudi Building Code SBC 401 (Electrical Installations: Sub-Metering and Energy Management) and SEC Standards.
• Earthing & Ground Bonding: In accordance with SBC requirements, earth continuity conductors must be securely bonded, maintaining an earth loop impedance strictly below 5.0 ohms to safeguard human life against fatal electric shock.
• Municipal & Environmental Guidelines: Waste refrigerants, contaminated lubricating oils, and chemical wash runoff must be captured and disposed of through authorized environmental recycling facilities, avoiding illegal discharge into municipal storm or sewer systems.

---

6. 2026 Transparent Saudi Market Pricing Matrix (SAR)

To protect homeowners against price gouging and substandard workmanship, DemandSa maintains complete pricing transparency across all major Saudi metropolitan centers:

| Service Classification | Average Market Price (SAR) | Typical Service Duration | Standard Warranty Period |
| :--- | :--- | :--- | :--- |
| Comprehensive Diagnostic Inspection | SAR 100 – 180 | 45 – 60 Minutes | Included in Service |
| Standard Preventive Service & Tune-Up | SAR 180 – 350 | 1.5 – 2.5 Hours | 30 Days |
| Intermediate Part Replacement | SAR 250 – 550 | 1.0 – 2.0 Hours | 90 Days (Parts & Labor) |
| Major Assembly Overhaul / Replacement | SAR 750 – 2,200 | 3.0 – 6.0 Hours | 180 Days |
| Emergency / Same-Day Dispatch Surcharge | SAR 80 – 150 | Immediate Priority | Guaranteed Fast Arrival |

Note: The pricing figures listed above represent certified competitive market averages across Riyadh, Jeddah, and the Eastern Province as of 2026. Specific costs depend on unit capacity, brand accessibility, and structural requirements.

---

7. Preventative Maintenance Schedule for Saudi Residences

Adhering to a disciplined maintenance schedule prevents costly emergency breakdowns during peak summer heatwaves:

• Bi-Weekly Routine: Inspect air intakes, clear visible windblown dust or debris from surrounding grilles, and verify that drainage paths remain unobstructed.
• Monthly Protocol: Wash reusable filtration elements, conduct visual inspections of electrical isolation switches, and monitor utility meter patterns on the SEC digital app for unusual consumption spikes.
• Biannual Pre-Summer Service (April / May): Commission a comprehensive professional deep clean, chemical coil or pipe flush, electrical terminal re-torquing, and full sensor calibration before seasonal temperatures exceed 40°C.
• Annual Overhaul (October / November): Execute full system descaling, inspect structural vibration isolation pads, check anti-corrosion sacrificial anodes, and renew weather seals around exterior enclosures.

---

8. Top 5 Costly Mistakes Saudi Homeowners Must Avoid

1. Hiring Unlicensed Freelance Technicians: Engaging unverified street laborers lacking diagnostic instruments often leads to misdiagnosed faults, stripped bolts, bypassed safety switches, and dangerous electrical fire hazards.
2. Postponing Maintenance Until Total Failure: Operating equipment with minor warning noises or reduced output forces internal components to work at extreme temperatures, transforming a simple 150 SAR capacitor replacement into an expensive 2,000 SAR motor burnout.
3. Using Substandard Counterfeit Spare Parts: The local market contains gray-market replica parts that fail within weeks under 50°C summer conditions. Always demand verified OEM components with manufacturer warranty papers.
4. Ignoring Chemical Flush Guidelines: Using aggressive industrial acids or caustic sodium hydroxide dissolves aluminum fins, thins copper pipe walls, and destroys rubber gaskets, creating hidden leaks inside structural walls and slabs.
5. Overlooking Proper Ventilation Clearances: Storing garden furniture, packing boxes, or building decorative wooden screens tight against outdoor condenser units restricts air circulation, triggering chronic high-pressure thermal shutdowns.

---

9. Frequently Asked Questions (Technical Q&A)

Q: Does installing CT energy clamps require cutting electrical wires in my panel?

Answer: NO! Split-core CT clamps have a hinged plastic body that snaps around the outside of existing insulated wires. Current is measured via magnetic induction, with zero physical wire cutting or modification required.

Q: Can an energy monitor detect a hidden electrical ground leak?

Answer: Yes! By comparing the sum of current on incoming phase conductors against the neutral return, advanced monitors detect phantom ground leakage current that wastes electricity into structural concrete.

Q: How much money can real-time sub-metering save on a Saudi summer electric bill?

Answer: Homeowners typically achieve 15% to 28% reductions in monthly electric bills (saving SAR 400 to SAR 1,200/month) simply by identifying failed thermostats that never shut off and shifting pool filtration hours.

Q: Is the data visible in Saudi Riyals rather than confusing kilowatts?

Answer: Yes! Modern apps (like Emporia and Shelly) allow you to enter the exact SEC tariff rates (0.18 and 0.30 SAR/kWh), displaying real-time consumption directly in Saudi Riyals per day, week, and month.

---
