MCB vs RCD vs RCBO Circuit Breakers: Electrical Safety & Shock Protection in Saudi Homes

1. Executive Summary & The Reality of Saudi Arabia's Climate

Maintaining Miniature Circuit Breakers (MCB), Residual Current Devices (RCCB), and Integrated RCBO Modules in the Kingdom of Saudi Arabia requires an engineering approach that directly accounts for the harshest desert climate conditions on earth. Whether you manage a modern villa in the north of Riyadh, a coastal residence overlooking the Red Sea in Jeddah, or an expansive family estate in the Eastern Province (Dammam, Khobar, and Dhahran), external environmental parameters dictate operational reliability.

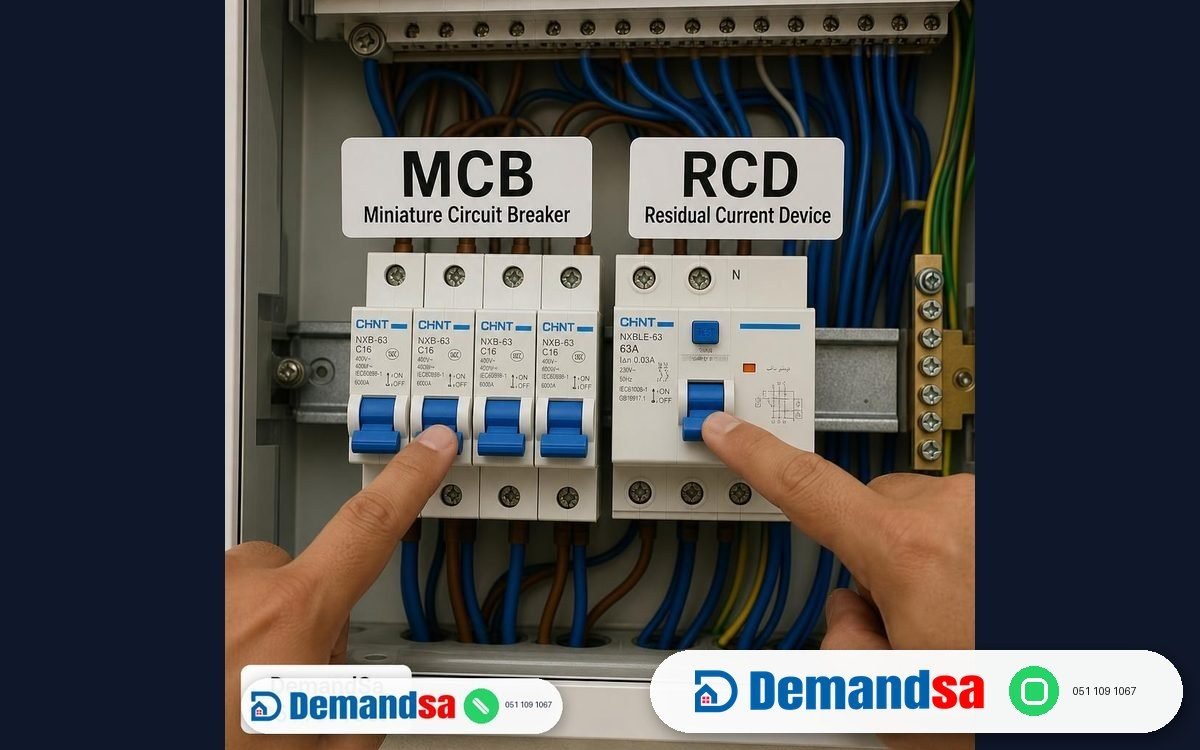

Electrical panels in Saudi Arabia endure intense conditions: ambient garage or outdoor enclosure temperatures reaching 50°C de-rate breaker thermal trip curves, while high-inductive AC compressor startup currents stress magnetic coils. Homeowners frequently confuse standard Miniature Circuit Breakers (MCBs) with Residual Current Devices (RCDs). An MCB will happily allow 15 Amps of fatal electrical current to pass through a human body touching a live wire in a wet shower without tripping! Understanding the distinct life-saving role of each breaker prevents catastrophic electrocution and electrical fires.

When ambient daytime summer temperatures consistently hover between 46°C and 52°C, equipment safety margins narrow dramatically. A minor issue—such as a 10% reduction in heat transfer, a minor electrical phase unbalance, or a partially restricted drainage line—compounds rapidly under continuous thermal stress into catastrophic component failure. Beyond the immediate inconvenience and disruption to household comfort, unaddressed problems accelerate electricity consumption across Saudi Electricity Company (SEC) progressive billing tiers, causing monthly utility expenses to skyrocket. Understanding the technical mechanics of your installation, executing systematic diagnostic checklists, and adhering to the Saudi Building Code (SBC) standards ensures long-term performance, family safety, and significant financial savings over the asset's operating lifespan.

---

2. Technical Anatomy & Core Component Architecture

To troubleshoot and maintain Miniature Circuit Breakers (MCB), Residual Current Devices (RCCB), and Integrated RCBO Modules effectively, homeowners and facility managers must understand the critical components that make up the system:

• Primary Mechanical & Electrical Assemblies: Modern residential installations rely on Miniature Circuit Breakers (MCB Type B/C, 6A–63A), Residual Current Circuit Breakers (RCCB 30mA/300mA), Residual Current Breakers with Overcurrent Protection (RCBO), and bi-metallic thermal-magnetic trip mechanisms..
• Thermal & Environmental Vulnerabilities: Extreme temperature swings between blistering outdoor sunlight and air-conditioned indoor spaces create thermal expansion and contraction cycles. This physical movement loosens terminal lugs, strains mechanical joints, and accelerates the degradation of rubber gaskets, synthetic seals, and protective coatings.
• Atmospheric Contaminants: Fine airborne silica particles from seasonal Shamal sandstorms possess high abrasive properties. When drawn into moving parts or electrical contacts, silica dust combines with ambient moisture or lubricant grease to form a destructive abrasive paste that scorches electrical contacts and grinds away metallic bearings.

---

3. Comprehensive Diagnostic Protocol & Warning Signs

Before undertaking any mechanical intervention or scheduling a service technician, complete this systematic diagnostic procedure to pinpoint the root cause of the malfunction:

Physical Symptoms to Inspect Homeowners commonly report the following warning indicators: Breakers tripping when water splashes near bathroom switches, main panel buzzing loudly, feeling a mild shock when touching the washing machine, or entire apartment losing power when a single bulb pops.

Step-by-Step Diagnostic Routine 1. Visual & Acoustic Assessment: Inspect exterior and interior housings for signs of physical distress, including oil staining (indicating refrigerant or hydraulic leaks), scorching or discoloration near electrical terminations, violent vibrations, or abnormal mechanical grinding sounds. 2. Operational Load & Environmental Check: Verify ambient conditions. Confirm that ventilation clearances around outdoor units comply with manufacturer minimums (at least 50cm from structural perimeter walls). 3. Electrical Verification: Utilize a calibrated True-RMS digital multimeter to measure operating voltage and running amperage. Compare measured values against the manufacturer technical nameplate rating; any deviation exceeding ±7% warrants immediate shutdown to prevent motor winding burnout. 4. Thermal Imaging & Differential Temperature: For cooling and heating circuits, measure the temperature drop (Delta T) between intake and supply registers; a healthy system should sustain a consistent thermal differential appropriate to its design specifications.

---

4. Step-by-Step Professional Execution & Service Walkthrough

When performing preventative maintenance or executing corrective repairs, strictly follow this certified step-by-step engineering walkthrough:

1. MCB (Miniature Circuit Breaker) — Protecting Wires & Equipment: MCBs provide dual protection: thermal protection against prolonged current overloads (e.g., plugging three heaters into one socket) and magnetic protection against dead short circuits (Live wire touching Neutral). MCBs DO NOT protect humans against electric shock! 2. RCD / RCCB (Residual Current Device) — Protecting Human Lives: an RCD monitors the balance between current flowing OUT on the Live wire and current returning ON the Neutral wire; if even 30 milliamps (0.030A) leaks out (e.g., through a child's hand into a wet floor), the toroidal coil detects the current imbalance and trips the circuit in under 40 milliseconds, saving life! 3. The Modern RCBO (The Gold Standard): an RCBO combines an MCB and an RCD into a single compact DIN-rail module; it provides overload protection, short-circuit protection, AND 30mA earth leakage protection in one device. 4. Why Upgrading to RCBOs Eliminates 'Nuisance Tripping': in older panels, one large 30mA RCD protects 8 separate MCB circuits; when one bedroom AC develops a tiny leak, the entire floor plunges into darkness! Replacing with individual RCBOs ensures that only the faulted circuit trips, leaving the rest of the villa fully powered. 5. Perform the Monthly Test Button Audit: press the yellow/blue 'TEST' button on your RCD/RCBO once every 30 days; the breaker must snap open instantly; if pressing the test button does not trip the switch, the internal sensing mechanism has seized and offers zero protection against electrocution. 6. Ensure Correct Ampacity Matching: never replace a tripping 16A breaker with a 32A breaker without upgrading the wire gauge; over-sized breakers allow thin wires to melt inside walls without tripping, causing hidden wall fires.

Essential Tooling & Safety Equipment - True-RMS Digital Multimeter and Clamp Meter (CAT III 600V certified). - Calibrated Torque Wrench (1.0 to 25.0 Nm range). - Personal Protective Equipment (PPE): Level 2 dielectric safety gloves, impact-resistant safety goggles, and steel-toe work boots. - Genuine OEM replacement parts matched to exact equipment serial numbers. Never substitute generic unauthorized parts on high-stress Saudi residential systems.

---

5. Saudi Building Code (SBC) & Regulatory Compliance

All residential installations and contractor modifications within the Kingdom must conform rigorously to national engineering frameworks:

• Primary Regulatory Standard: Saudi Building Code SBC 401 (Section 411: Protection Against Electric Shock) and SASO IEC 61008/61009 Standards.
• Earthing & Ground Bonding: In accordance with SBC requirements, earth continuity conductors must be securely bonded, maintaining an earth loop impedance strictly below 5.0 ohms to safeguard human life against fatal electric shock.
• Municipal & Environmental Guidelines: Waste refrigerants, contaminated lubricating oils, and chemical wash runoff must be captured and disposed of through authorized environmental recycling facilities, avoiding illegal discharge into municipal storm or sewer systems.

---

6. 2026 Transparent Saudi Market Pricing Matrix (SAR)

To protect homeowners against price gouging and substandard workmanship, DemandSa maintains complete pricing transparency across all major Saudi metropolitan centers:

| Service Classification | Average Market Price (SAR) | Typical Service Duration | Standard Warranty Period |
| :--- | :--- | :--- | :--- |
| Comprehensive Diagnostic Inspection | SAR 100 – 180 | 45 – 60 Minutes | Included in Service |
| Standard Preventive Service & Tune-Up | SAR 180 – 350 | 1.5 – 2.5 Hours | 30 Days |
| Intermediate Part Replacement | SAR 250 – 550 | 1.0 – 2.0 Hours | 90 Days (Parts & Labor) |
| Major Assembly Overhaul / Replacement | SAR 750 – 2,200 | 3.0 – 6.0 Hours | 180 Days |
| Emergency / Same-Day Dispatch Surcharge | SAR 80 – 150 | Immediate Priority | Guaranteed Fast Arrival |

Note: The pricing figures listed above represent certified competitive market averages across Riyadh, Jeddah, and the Eastern Province as of 2026. Specific costs depend on unit capacity, brand accessibility, and structural requirements.

---

7. Preventative Maintenance Schedule for Saudi Residences

Adhering to a disciplined maintenance schedule prevents costly emergency breakdowns during peak summer heatwaves:

• Bi-Weekly Routine: Inspect air intakes, clear visible windblown dust or debris from surrounding grilles, and verify that drainage paths remain unobstructed.
• Monthly Protocol: Wash reusable filtration elements, conduct visual inspections of electrical isolation switches, and monitor utility meter patterns on the SEC digital app for unusual consumption spikes.
• Biannual Pre-Summer Service (April / May): Commission a comprehensive professional deep clean, chemical coil or pipe flush, electrical terminal re-torquing, and full sensor calibration before seasonal temperatures exceed 40°C.
• Annual Overhaul (October / November): Execute full system descaling, inspect structural vibration isolation pads, check anti-corrosion sacrificial anodes, and renew weather seals around exterior enclosures.

---

8. Top 5 Costly Mistakes Saudi Homeowners Must Avoid

1. Hiring Unlicensed Freelance Technicians: Engaging unverified street laborers lacking diagnostic instruments often leads to misdiagnosed faults, stripped bolts, bypassed safety switches, and dangerous electrical fire hazards.
2. Postponing Maintenance Until Total Failure: Operating equipment with minor warning noises or reduced output forces internal components to work at extreme temperatures, transforming a simple 150 SAR capacitor replacement into an expensive 2,000 SAR motor burnout.
3. Using Substandard Counterfeit Spare Parts: The local market contains gray-market replica parts that fail within weeks under 50°C summer conditions. Always demand verified OEM components with manufacturer warranty papers.
4. Ignoring Chemical Flush Guidelines: Using aggressive industrial acids or caustic sodium hydroxide dissolves aluminum fins, thins copper pipe walls, and destroys rubber gaskets, creating hidden leaks inside structural walls and slabs.
5. Overlooking Proper Ventilation Clearances: Storing garden furniture, packing boxes, or building decorative wooden screens tight against outdoor condenser units restricts air circulation, triggering chronic high-pressure thermal shutdowns.

---

9. Frequently Asked Questions (Technical Q&A)

Q: Will an MCB breaker trip if a person touches a live wire?

Answer: NO! A human is electrocuted by as little as 0.05 Amps. A standard 16A or 20A MCB will not trip until current exceeds 16 to 20 Amps, meaning an MCB will never save a person from electrocution. Only a 30mA RCD or RCBO protects human life.

Q: What is the difference between a 30mA and a 300mA RCD?

Answer: A 30mA RCD is engineered for human life-safety (required for all home sockets, bathrooms, and water heaters). A 300mA RCD is installed on main service panels to protect buildings against electrical fires caused by arcing.

Q: Why does my RCD trip during heavy rainstorms?

Answer: Outdoor courtyard lighting fixtures, garden sockets, or water pumps have absorbed moisture through cracked seals, creating an earth leakage current to ground that trips the sensitive 30mA safety threshold.

Q: How often should I press the 'TEST' button on my safety breaker?

Answer: The Saudi Electrical Code mandates testing RCD and RCBO test buttons once every month to verify that the mechanical trip linkage has not seized from dust or age.

---
